Face Detection

Image title

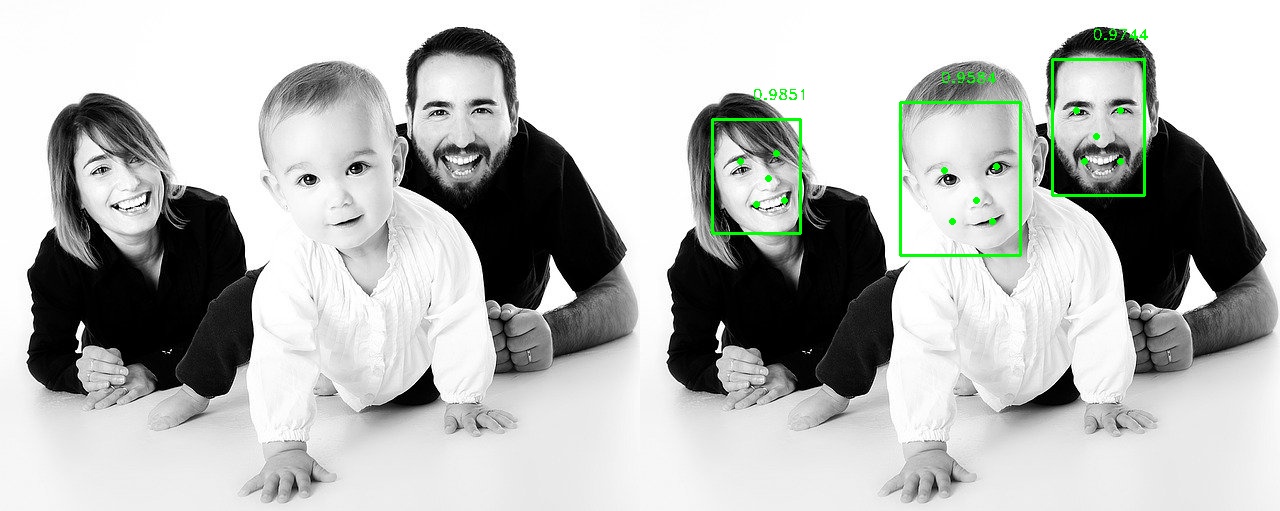

Query image and prediction

BiWAKO.YuNet

Face Detection model.

Attributes:

Name Type Description
model onnxruntime.InferenceSession

ONNX model.

input_name str

name of input node.

output_names list

names of three output nodes.

input_shape list

shape of input image. Set to [160, 120] by default.

conf_th float

confidence threshold. Set to 0.6 by default.

nms_th float

non-maximum suppression threshold. Set to 0.3 by default.

topk int

keep top-k results. Set to 5000 by default.

priors np.ndarray

prior boxes.

__init__(self, model='yunet_120_160', input_shape=[160, 120], conf_th=0.6, nms_th=0.3, topk=5000, keep_topk=750) special

Initialize YuNet.

Parameters:

Name Type Description Default
model str

model name. Set to "yunet_120_160" by default.

'yunet_120_160'
input_shape list

Input image shape. Defaults to [160, 120].

[160, 120]
conf_th float

Confidence level threshold. Defaults to 0.6.

0.6
nms_th float

NMS threshold. Defaults to 0.3.

0.3
topk int

Number of faces to detect. Defaults to 5000.

5000
keep_topk int

Number of predictions to save. Defaults to 750.

750

predict(self, image)

Return the face detection result.

The prediction result is a tuple of three lists. First list is bounding boxes, second list is landmarks, and third list is scores. For example, accesing 2nd parson's bounding box is done by prediction[1][0], and prediction[1][1] is landmarks of 2nd person.

Parameters:

Name Type Description Default
image Image

image to be detected. Accept path or cv2 image.

required

Returns:

Type Description
Tuple[list, list, list]

Tuple of three lists of bounding box, landmark, and score.

render(self, prediction, image)

Render the bounding box and landmarks on the original image.

Parameters:

Name Type Description Default
prediction tuple

prediction result returned by predict().

required
image Image

original image in str or cv2 image.

required

Returns:

Type Description
np.ndarray

Original image with bounding box and landmarks.
